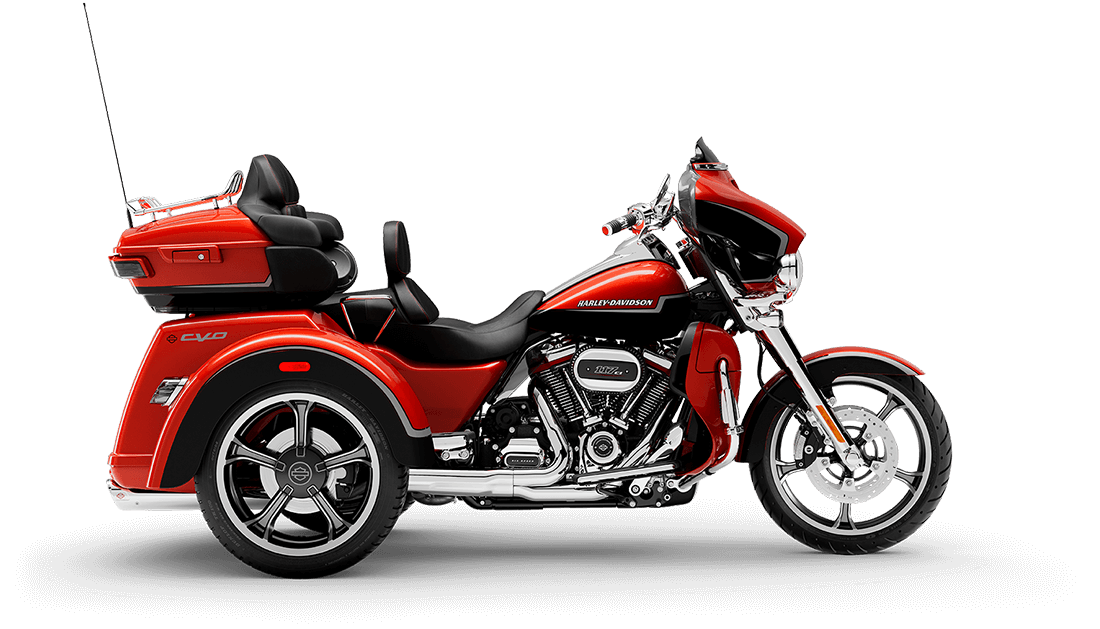

‹ Home › Inventory › 2021 Harley-Davidson® CVO™ Tri Glide® SUNSET ORANGE & SUNSET BLK

The all-new CVO™ Tri Glide® is a custom trike that's loaded with more premium touring features and chrome accessories than you could ever imagine. Bold styling with premium paint and Tomahawk™ wheels, Twin-Cooled™ Milwaukee-Eight® 117 engine and Kahuna™ controls will thrill riders seeking a one-of-a-kind 3-wheel touring experience.

Specifications

Dimensions

add remove
- Length:

  105.1 in
- Ground clearance:

  5.1 in
- Rake (steering head):

  26
- Trail:

  3.9 in
- Wheelbase:

  65.7 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  P215/45R18 83T
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  1,241 lbs
- Weight, in running order:

  1269 lb
- Luggage capacity – volume:

  6.8 cu ft (0.19 m3)
Engine

add remove
- Engine:

  Twin-Cooled™ Milwaukee-Eight™ 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust with slash cut tip
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  120.2 ft-lb
- Engine torque (RPM):

  3500
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  0.02 mpg
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  163 g/km
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  10.534
- Gear ratios (overall) 2nd:

  7.302
- Gear ratios (overall) 3rd:

  5.423
- Gear ratios (overall) 4th:

  4.392
- Gear ratios (overall) 5th:

  3.741
- Gear Ratios (overall) 6th:

  3.157
Chassis

add remove
- Wheels, optional style type:

  Gloss Black and Contrast Smoked Satin Tomahawk
- Wheels, front type:

  Gloss Black and Contrast Clear Tomahawk
- Wheels, rear type:

  Gloss Black and Contrast Clear Tomahawk
- Brakes, caliper type:

  Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake
Electric

add remove
- Lights (as per country regulation), indicator:

  High Beam, running lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, low fuel warning, reverse, park brake, fog/aux lamp indicator, traction control, security/fault indication, coolant temp, turn signal, ABS, TPMS
- Gauges:

  Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator, and tire pressure
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  75
- Speakers:

  4
- Speaker size:

  Boom! Audio Stage I
- Headset specifications (if equipped):

  Boom! Audio 30K Wireless Headset
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Voice Recognition Languages: Tuner / Media / Navigation:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Text-to-Speech (TTS) languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Rider / passenger intercom:

  Standard
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
